- Model
-

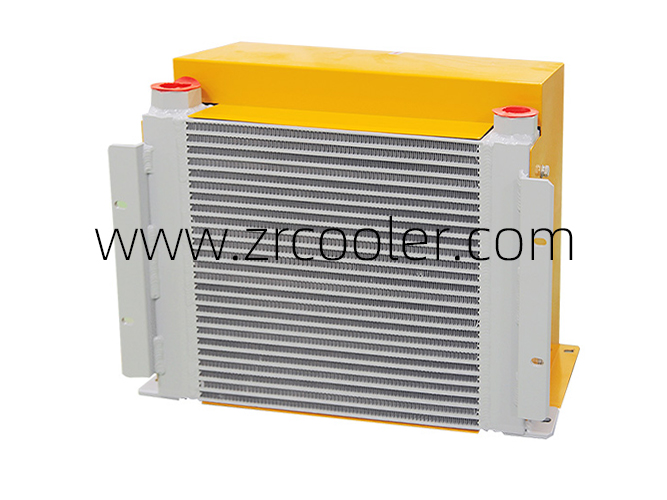

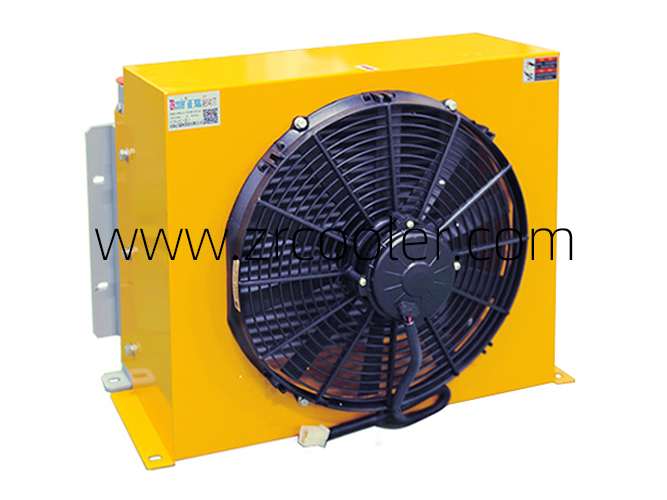

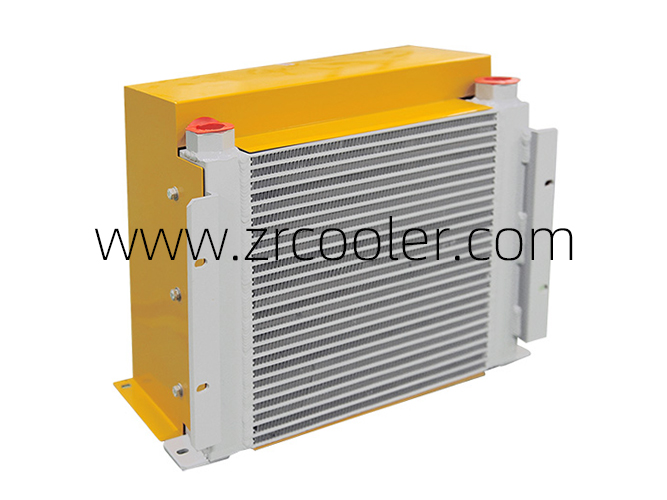

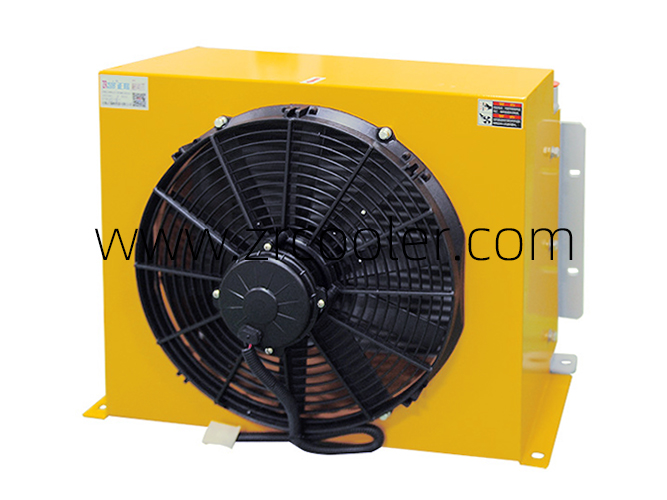

AH1417T-CD hydraulic oil cooler
- Category：AH series hydraulic oil cooler
- Views：327
This series of products are made of aluminum alloy materials with light weight, high seismic strength and high heat exchange efficiency. In the structure, there are fins in the tabulators, this can maximize the radiation area, accelerate heat transmission. Under the work of the fan and the cooling source of air, the heat is taken away. So it is the best cooling choice of the low cost and high efficiency.

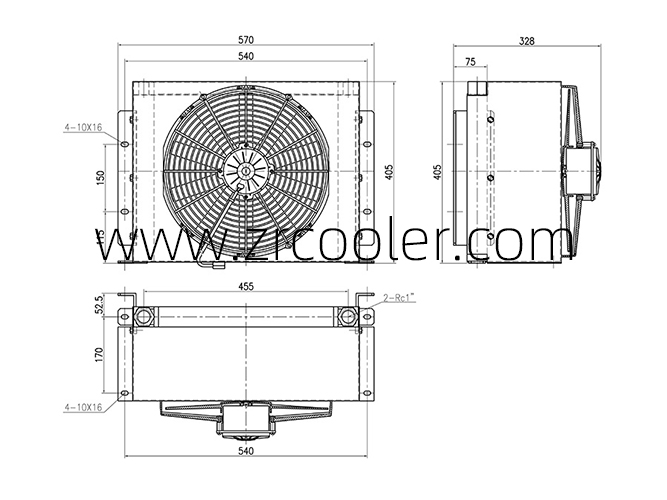

If you need the detailed size of the product, please contact our company.
1. Environmental, energy-saving, simple maintenance and low cost.
2. Large heating area and high heat exchange efficiency.
3. Long service life and high operating pressure, applicable to return oil cooling system, leakage oil cooling system and independent circuit cooling system.
4. Simple operation, easy installation and low failure.
5. Safe operation, causing no fetal damage to the system like the water cooler in case of rupture. ??
6. Applicable fluid temperature: 10℃~180℃, Ambient temperature: -40℃~100℃.
The series produets are applicable to the hydraulic oil cooling system, lubrication system, transmission oil system, mooring oil pressure system, vehicle oil pressure system, power system, and cooling system of other fluids. Bypass leakage circuit can be added in certain circumstances to ensure safety.
To ensure the cooling effect, the dust in the air duct fins of the cooler should be removed regularly (once every 6 months) with low-pressure compressed air or vacuum cleaner. In order to ensure safety, it should be maintained under shutdown
If the fan stops automatically during use, this is a self-protection shutdown caused by fan overheating, which is a normal phenomenon. It will work automatically after it cools down for a period of time. Do not touch the fan during this period to avoid danger.
