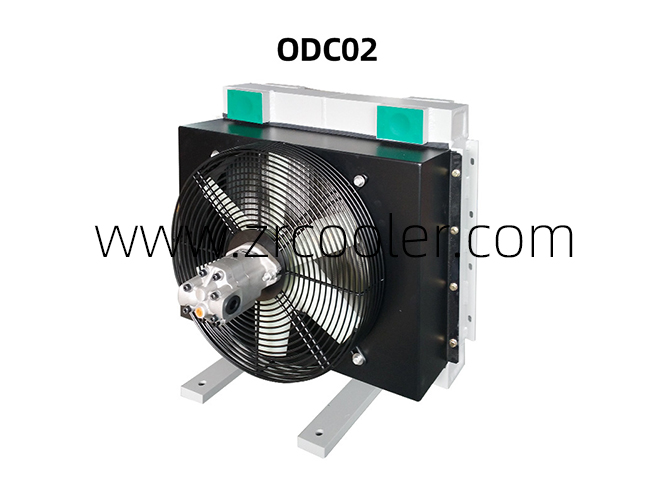

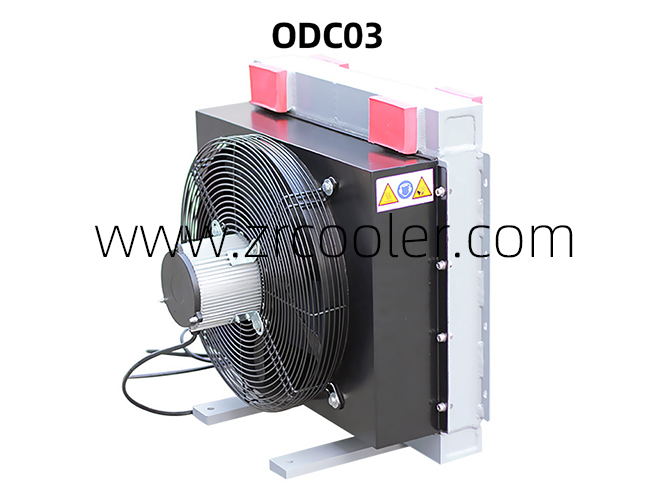

This series of products are made of aluminum alloy materials with light weight, high seismic strength and high heat exchange efficiency. In the structure, there are fins in the tabulators, this can maximize the radiation area, accelerate heat transmission. Under the work of the fan and the cooling source of air, the heat is taken away. So it is the best cooling choice of the low cost and high efficiency.

CODE  type		ODC01	ODC02	ODC03	ODC04	ODC05	ODC06
	外型尺寸 Dimension    mm
A	mm	390	490	590	750	850	1000
B	mm	490	610	727	920	1035	1190
C	mm	80	90	100	113	125	140
D	mm	290	310	350	300	345	400
E	mm	540	660	777	970	1085	1240
F	mm	290	410	527	620	735	890
G	mm	530	630	735	900	1000	1160
H	mm	340	350	360	380	390	410
I	mm				450	460	480
Power	kw	12～15	21～26	33～40	56～70	78～95	110～135
oil flow	L/min	50～150	80～200	100～250	150～400	200～450	250～550
oil inlet Temp[℃]	℃	70	70	70	70	70	70
Volume	L	6.12	9.47	14.3	26.4	33.2	48.9
cooling air flow	m³/h	3600	5700	8400	13000	17000	22200
fan diametre	mm	350	450	550	690	750	900
Motor voltage	v	220/380	220/380	220/380	液壓馬達	液壓馬達	液壓馬達
Max.working pressure	bar	20	20	20	20	20	20
environment Temp	℃	35	35	35	35	35	35
Scope of application	Cooling of various hydraulic oil, lubricating oil, torque converter oil and fuel oil (calculation parameters are calculated according to No. 46 hydraulic oil)

ODC Series  Performance List

oil flow-L/min		50	80	100	150	200	250	300	350	400	450	500	550

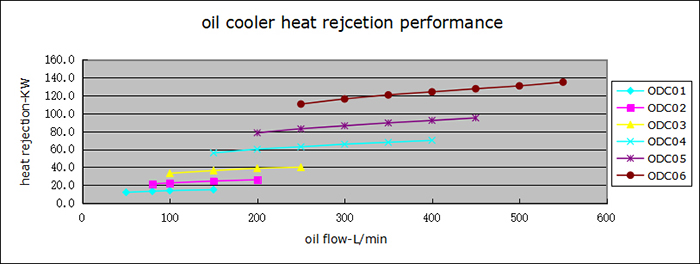

heat rejection-KW	ODC01	12.0	13.2	13.9	15.0
	ODC02		21.5	22.5	24.6	26.0
	ODC03			33.2	36.3	38.8	40.0
	ODC04				56.0	60.1	62.8	65.7	67.8	70.0
	ODC05					78.4	82.9	86.3	89.5	92.2	95.0
	ODC06						110.5	116.2	120.7	124.1	127.6	130.8	135.0

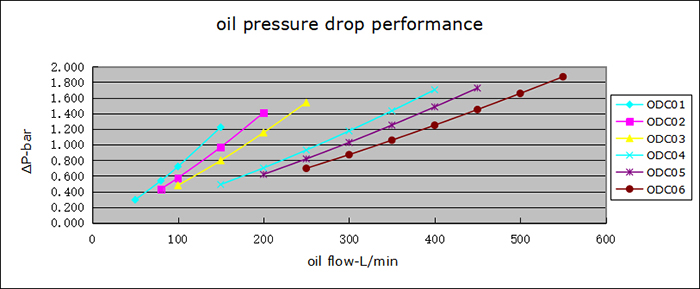

oil ΔP-bar	ODC01	0.294	0.538	0.720	1.223
	ODC02		0.432	0.574	0.968	1.408
	ODC03			0.478	0.797	1.154	1.539
	ODC04				0.490	0.702	0.931	1.175	1.433	1.702
	ODC05					0.619	0.818	1.028	1.250	1.483	1.724
	ODC06						0.697	0.872	1.057	1.249	1.449	1.656	1.869

1. Environmental, energy-saving, simple maintenance and low cost.
2. Large heating area and high heat exchange efficiency.
3. Long service life and high operating pressure, applicable to return oil cooling system, leakage oil cooling system and independent circuit cooling system.
4. Simple operation, easy installation and low failure.
5. Safe operation, causing no fetal damage to the system like the water cooler in case of rupture. ??
6. Applicable fluid temperature: 10℃~180℃, Ambient temperature: -40℃~100℃.

The series produets are applicable to the hydraulic oil cooling system, lubrication system, transmission oil system, mooring oil pressure system, vehicle oil pressure system, power system, and cooling system of other fluids. Bypass leakage circuit can be added in certain circumstances to ensure safety.

To ensure the cooling effect, the dust in the air duct fins of the cooler should be removed regularly (once every 6 months) with low-pressure compressed air or vacuum cleaner. In order to ensure safety, it should be maintained under shutdown

If the fan stops automatically during use, this is a self-protection shutdown caused by fan overheating, which is a normal phenomenon. It will work automatically after it cools down for a period of time. Do not touch the fan during this period to avoid danger.
